XHD2 Four Cell System

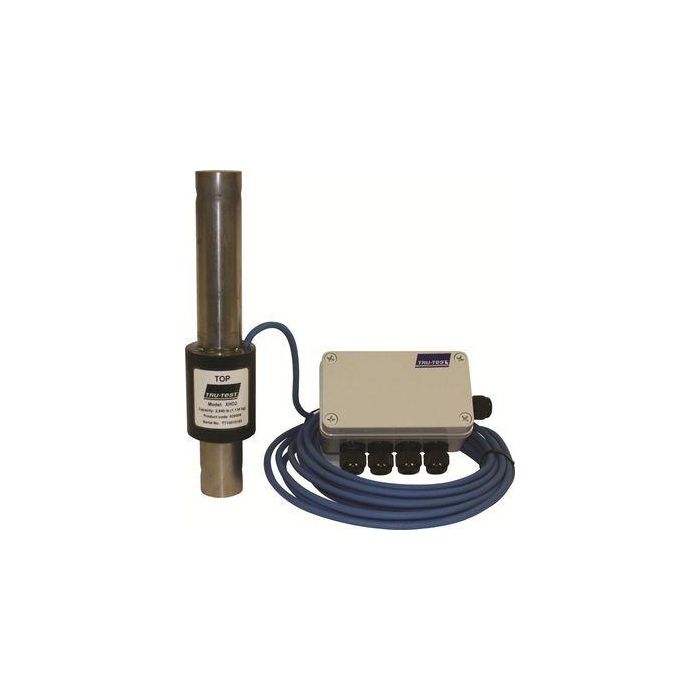

The Tru-Test XHD2 Load Cell System is designed for permanent installations under manual or hydraulic squeeze chutes and multiple animal platform scales. The system comes complete with four single load cells, junction box and lead-out cable (also known as Home Run Cable) which connects the junction box to the weigh scale indicator. 4 individual heavy duty cells and a junction box each have a 2,500 lb capacity (10,000 lb. total system capacity.) Each load cell is 11" in length, 1.5" in diameter and weighs approximately 7 pounds. There will only be about 4 inches in height between the ground and the chute when these are installed under the chute. There is a bracket that comes with the load cells that can be welded or bolted to the chute. Designed for harsh environments the system is protected to prevent moisture and corrosion damage.

Strong and durable construction for large crush/chute installations. Plug-and-Play. Use with any weigh scale indictor in the Tru-Test range without calibration. Push fit cable connectors in junction box. Plated and sealed load cell. Protects against moisture and corrosion damage for permanent outdoor installation. Mounting brackets – optional mounting bracket allows for fast and easy installation with various types of equipment (i.e. cattle chutes, large platforms). Plug and play – factory calibrated with most Tru-Test scale indicators; span calibration may be required on older indicator models.

XHD2 Four Cell System Highlights:

• SKU: 12271
• Manufacturer: Tru-Test
• 26 foot of cable for set-up flexibility
• Can be used with large platform scales
• Fully water, dirt and rodent resistant
• Maximum capacity 10,000 lbs.
• Extra heavy duty plated tool steel
• Load cells individually wired with junction box for easy set-up
• Sealed load cells are also plated for corrosion resistance
• Load cell brackets available for select squeeze chute installations.
• Rugged – strong and durable construction for extreme installations
• Cable connectors – wire joiners inside the Junction Box allow good wire contact and quick setup
• Plated and sealed load cell – protects against moisture and corrosion damage in harsh environments.
