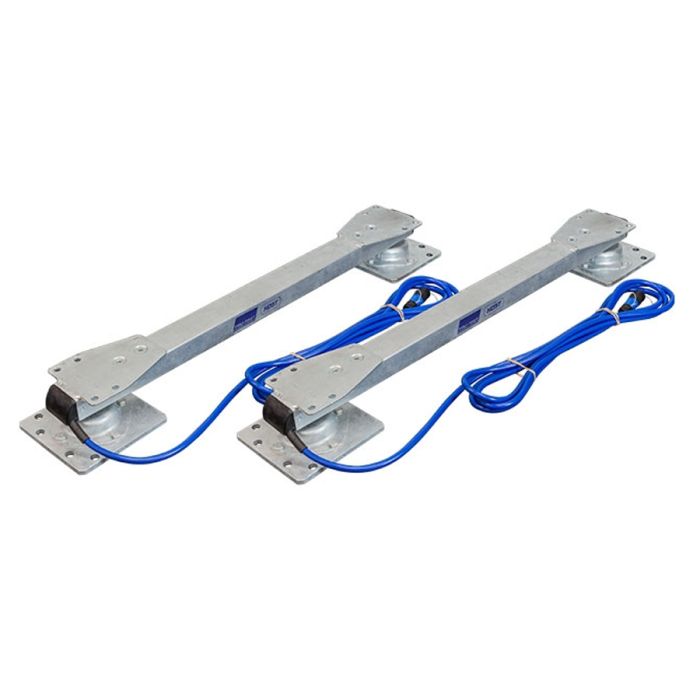

HD5T Load Bars

Tru-Test HD5T Load Bars are heavy-duty load bars with 11,000 lb capacity. Designed for installation under any manual or hydraulic squeeze chute. Rugged durability constructed of galvanized steel to withstand the harshest agricultural environment. The load bars are fitted under the cattle chute to transmit the weight signal to the indicator. Easy to install by simply bolting load bars to the squeeze chute; then, bolt to a level concrete surface. The Tru-Test Heavy Duty HD5T Load Bars are for permanent installations under squeeze chutes. The load cell is sealed providing protection against moisture, allowing the load bars to remain installed under the chute. Constructed with heavy-duty TPR/PVC cables to reduce incidents of damage. Use with Tru-Test indicators (sold separately) to record live weight of livestock animals. Tru-Test load bars are recognised for their rugged durability and performance in harsh environments. The HD5T Load Bars are designed to be tough, reliable and easy to install under any crush. The simplicity of set up means you can easily install with no assistance needed.

HD5T Load Bars Highlights:

• SKU: 34212
• Manufacturer: Tru-Test
• Cable length: 16 feet (5 m).
• Overall height: 4.3 feet (110 mm).
• Bar section width: 3 feet (75 mm).
• Resolution: base resolution with tru-test scales; 2 x HD5T load bars = 1.10 lb (0.5 kg).
• Total capacity: 2 x HD5T load bars = 11,000 lbs (5,000 kg).
• Nominal length: 43 inches (1115 mm).
• Accuracy +/- 1% or 2 resolutions, whichever is greater.
• Weight of the pair: 80 lbs (36 kg).
• Rugged and durable construction.
• Ideal for mounting under the heaviest of cattle chutes
• Regularly remove dirt and manure build-up from around the load bars to ensure accurate weights.
• Load bars are heavy. Wear steel-toed boots/shoes and safety glasses when handling the load bars.

• Negligence to keep the load bars clean may, in extreme situations, cause premature failing of the load bars and void the warranty.
